SolrCloudを簡単に試せるよう、VagrantとAnsibleで構築できるようにしました。
引用元:https://wiki.apache.org/solr/SolrCloud
SolrCloudの構成
以下のような構成で構築します。
Solrサーバ
記事書いている時点ではSolrは 6.2.1
を使っています。
ホスト名 | IP | Solr Node | Port |
---|---|---|---|
solr1 | 192.168.110.11 | solr_node_8901 | 8901 |
- | - | solr_node_8902 | 8902 |
solr2 | 192.168.110.12 | solr_node_8901 | 8901 |
- | - | solr_node_8902 | 8902 |
ZooKeeperサーバ
記事書いている時点ではZooKeeperは 3.4.9
を使っています。
ホスト名 | IP | Port |
---|---|---|
zk1 | 192.168.110.100 | 2181 |
インストール手順(Vagrant+Ansible)
以下に、Vagrantfileとansibleを準備してあるので簡単に環境準備できるはずです。
実際の手順
なお、手元の環境は以下になります。
構築自体は以下のコマンドを順番に実行するだけです。ネットワークの帯域次第ですが、30〜60分くらいで処理完了するかと思います。
$ git clone https://github.com/yomon8/solrcloud.git $ cd solrcloud $ vagrant up --no-provision && vagrant ssh-config > sshconfig && vagrant provision
終わったらブラウザからSolrCloudにアクセスしてみます。
http://192.168.110.11:8901/solr/#/~cloud

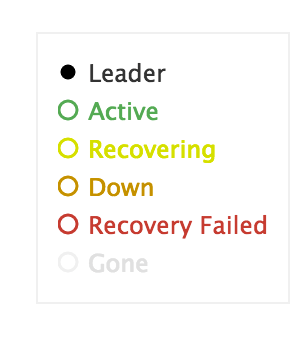

この時点ではCloudの中身見ても、何も登録されていない状態で、以下のような画面が表示されるはずです。
コレクション作成
コレクション mycollection1
を作成してみます。
[solr@solr1 ~]$ /opt/solr_node_8901/bin/solr create_collection -c mycollection1 -shards 2 -replicationFactor 2
実行結果は以下のようになりました。ZooKeeper側にもアクセスしてShardが構成されているのが読み取れます。
Connecting to ZooKeeper at 192.168.110.100:2181 ... Uploading /opt/solr_node_8901/server/solr/configsets/data_driven_schema_configs/conf for config mycollection1 to ZooKeeper at 192.168.110.100:2181 Creating new collection 'mycollection1' using command: http://localhost:8902/solr/admin/collections?action=CREATE&name=mycollection1&numShards=2&replicationFactor=2&maxShardsPerNode=1&collection.configName=mycollection1 { "responseHeader":{ "status":0, "QTime":20587}, "success":{ "192.168.110.11:8902_solr":{ "responseHeader":{ "status":0, "QTime":10449}, "core":"mycollection1_shard2_replica2"}, "192.168.110.11:8901_solr":{ "responseHeader":{ "status":0, "QTime":10453}, "core":"mycollection1_shard1_replica1"}, "192.168.110.12:8901_solr":{ "responseHeader":{ "status":0, "QTime":10413}, "core":"mycollection1_shard2_replica1"}, "192.168.110.12:8902_solr":{ "responseHeader":{ "status":0, "QTime":10779}, "core":"mycollection1_shard1_replica2"}}}
この時点で mycollection1
が作成されてShardとNodeの状態はこのようになっています。
同様に mycollection2
についても作成しておきます。
[solr@solr1 ~]$ /opt/solr_node_8901/bin/solr create_collection -c mycollection2 -shards 2 -replicationFactor 2
これで目標の環境は構築できました。
ZooKeeperでSolrの情報確認
ZooKeeper側でどのように情報が格納されているか確認してみます。
ZooKeeperである zk1
サーバにSSHで入って、ZooKeeperクライアントを起動します。
[vagrant@zk1 ~]$ /opt/zookeeper/bin/zkCli.sh
Solrのノード情報や、コレクション情報が登録されていることが確認できます。
[zk: localhost:2181(CONNECTED) 1] ls / [zookeeper, overseer, aliases.json, live_nodes, collections, overseer_elect, security.json, clusterstate.json] [zk: localhost:2181(CONNECTED) 2] ls /live_nodes [192.168.110.12:8901_solr, 192.168.110.11:8902_solr, 192.168.110.12:8902_solr, 192.168.110.11:8901_solr] [zk: localhost:2181(CONNECTED) 3] ls /collections [mycollection2, mycollection1]
テストデータ投入
mycollection1
側にSolr側で準備されているテストデータを投入してみます。
[solr@solr1 ~]$ /opt/solr_node_8901/bin/post -c mycollection1 -p 8901 /opt/solr_node_8901/example/exampledocs/*.xml
色々なノードに検索投げてみたり、
curl -s "http://192.168.110.11:8901/solr/mycollection1/select?indent=on&q=compName_s:Apple&wt=json" curl -s "http://192.168.110.11:8902/solr/mycollection1/select?indent=on&q=compName_s:Apple&wt=json" curl -s "http://192.168.110.12:8901/solr/mycollection1/select?indent=on&q=compName_s:Apple&wt=json" curl -s "http://192.168.110.12:8902/solr/mycollection1/select?indent=on&q=compName_s:Apple&wt=json"
Shard変えながら検索してみたりして実機で動き確認できます。
curl -s "http://192.168.110.11:8901/solr/mycollection1/select?indent=on&q=compName_s:Apple&wt=json&shards=shard1,shard2" curl -s "http://192.168.110.11:8901/solr/mycollection1/select?indent=on&q=compName_s:Apple&wt=json&shards=shard1" curl -s "http://192.168.110.11:8901/solr/mycollection1/select?indent=on&q=compName_s:Apple&wt=json&shards=shard2"
